- Intel® Core™ Ultra 7 255V Processor (2.4Ghz up to 5.2Ghz, 30MB Cache 20Cores)
- 16GB DDR5 5600MHZ RAM
- 1TB M.2 NVMe PCie Gen4 SSD
- Nvidia GeForce RTX5060 8GB GDDR7
- 16" WQXGA(2560x1600) 165Hz OLED 500nits 100% DCI-P3 Glossy Display
- Windows 11 Home
- 2 Years Warranty
PROMOTION VALID UNITL 30 SEPTEMBER 2025
- FREE LENOVO LEGION M600 MOUSE (GY50X79385)
| PERFORMANCE | |
| Processor |
Intel® Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB |
| AI PC Category |
AI-Powered Gaming PC |
| NPU |
Integrated Intel® AI Boost, up to 13 TOPS |
| Graphics |
NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS |
| Chipset |
Intel® HM870 Chipset |
| Memory |
1x 16GB SO-DIMM DDR5-5600 |
| Memory Slots |
Two DDR5 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 32GB DDR5-5600 offering |
| Storage |
1TB SSD M.2 2242 PCIe® 4.0x4 NVMe® |
| Max Storage Support |
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB |
| Storage Slot |
Two M.2 2280 PCIe® 4.0 x4 slots |
| Card Reader |
None |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC3306 codec |
| Speakers |
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio |
| Camera |
5.0MP with E-shutter |
| Microphone |
2x, Array |
| Battery |
80Wh |
| Power Adapter |
245W Slim Tip (3-pin) |
| Special Features |
AI Chip: LA3 |
| DESIGN | |
| Display |
16" WQXGA (2560x1600) OLED 500nits Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free |
| Touchscreen |
None |
| Screen-to-Body Ratio |
91.7% AAR (active area ratio) |
| Color Calibration |
Factory Color Calibration |
| Keyboard |
24-Zone RGB Backlit, English |
| Touchpad |
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches) |
| Case Color |
Eclipse Black |
| Surface Treatment |
Anodizing Sandblasting |
| Case Material |
Aluminium (Top), PC-ABS (Bottom) |
| Pen |
Pen Not Supported |
| Dimensions (WxDxH) |
364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches) |
| Weight |
Around 2.43 kg (5.36 lbs) |
| SOFTWARE | |
| Operating System |
Windows® 11 Home Single Language, Simplified Chinese / English |
| Bundled Software |
Office Trial + Lenovo® AI Now |
| CONNECTIVITY | |
| WLAN + Bluetooth |
Wi-Fi® 7, 802.11be 2x2 + BT5.4 |
| WWAN |
Non-WWAN |
| Ethernet |
100/1000M (RJ-45) |
| Standard Ports |
|
| Docking |
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Legion Pro 5 16IAX10 |
| SECURITY & PRIVACY | |
| Security Chip |
Firmware TPM 2.0 Enabled |
| Fingerprint Reader |
None |
| Other Security |
E-shutter |
| SERVICE | |
| Base Warranty |
1-year, Courier or Carry-in |
| Included Upgrade |
2Y Legion Ultimate Support -IPMAIN (ESS) |

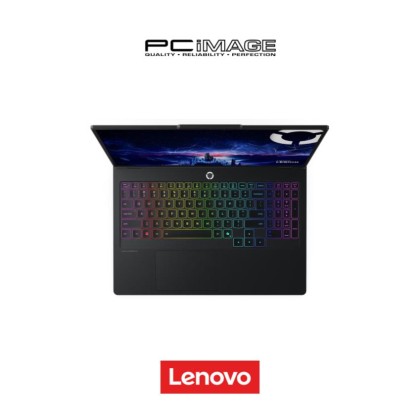

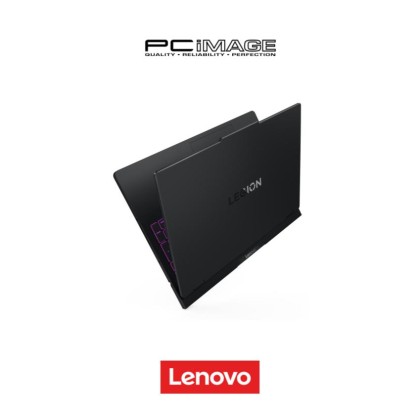

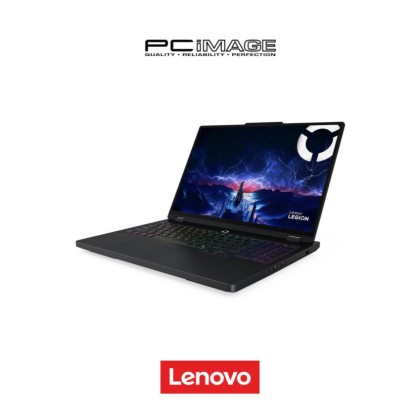

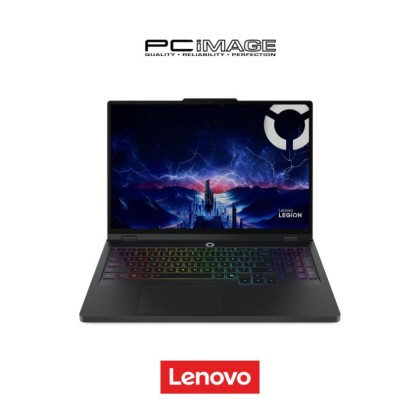

- 1xLENOVO Legion Pro 5I 16IAX10-83F3002QMJ 16" Gaming Laptop Eclipse Black (U7-255HX, 16GB DDR5, 1TB SSD, GeForce RTX5060 8GB, 16" WQXGA OLED, Win11H, 2YW)
